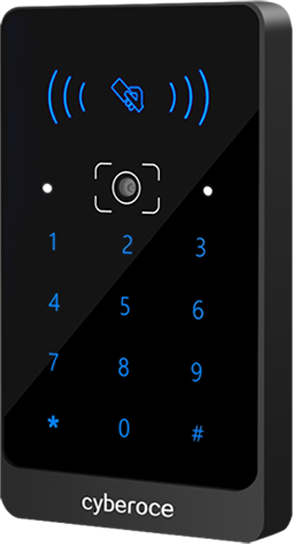

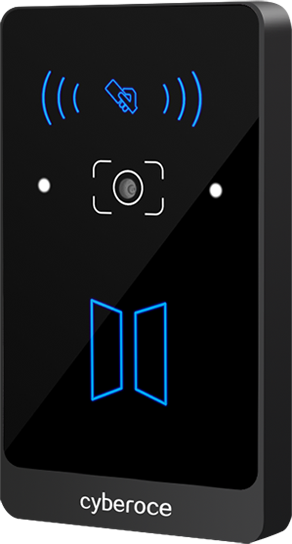

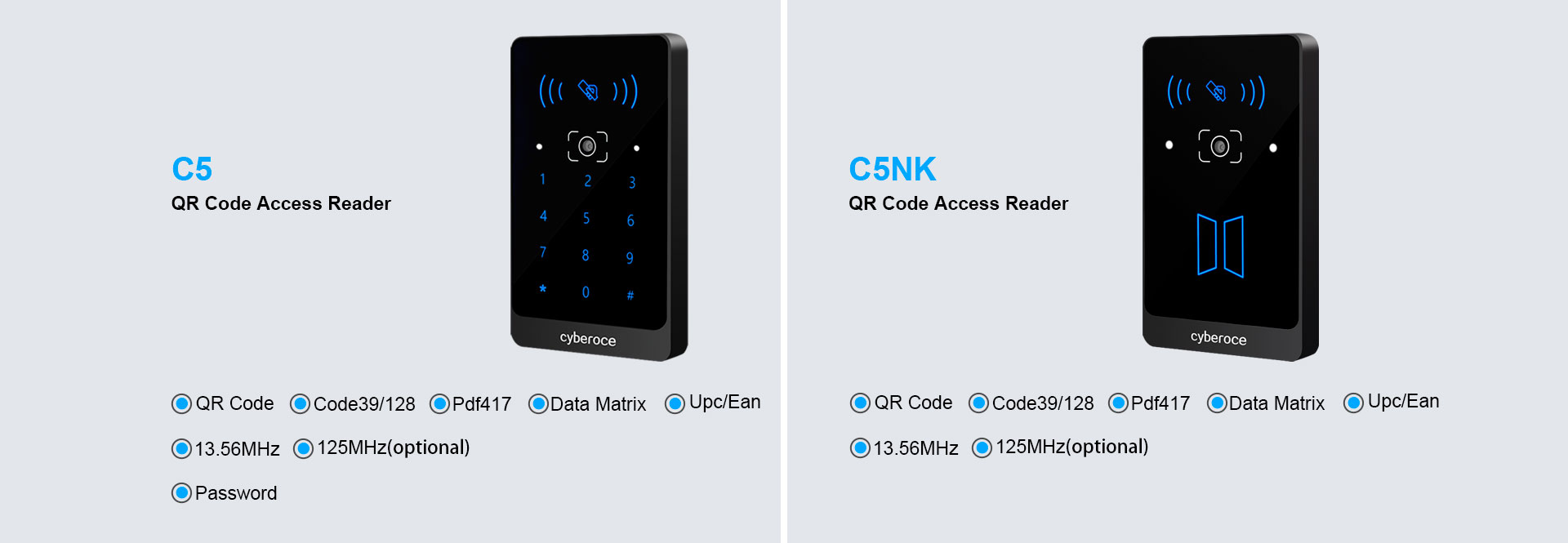

C5/C5NK
Cost-effective,Wiegand/RS485 / 2-in-1
Multi function QR code access reader
Support setting temporary QR codes
with time and frequency limits,
and automatic invalidation of visitor
permissions upon expiration.
Multiple Recognition Technologies
Touchless Access
Control QR Code
Scanner Reader

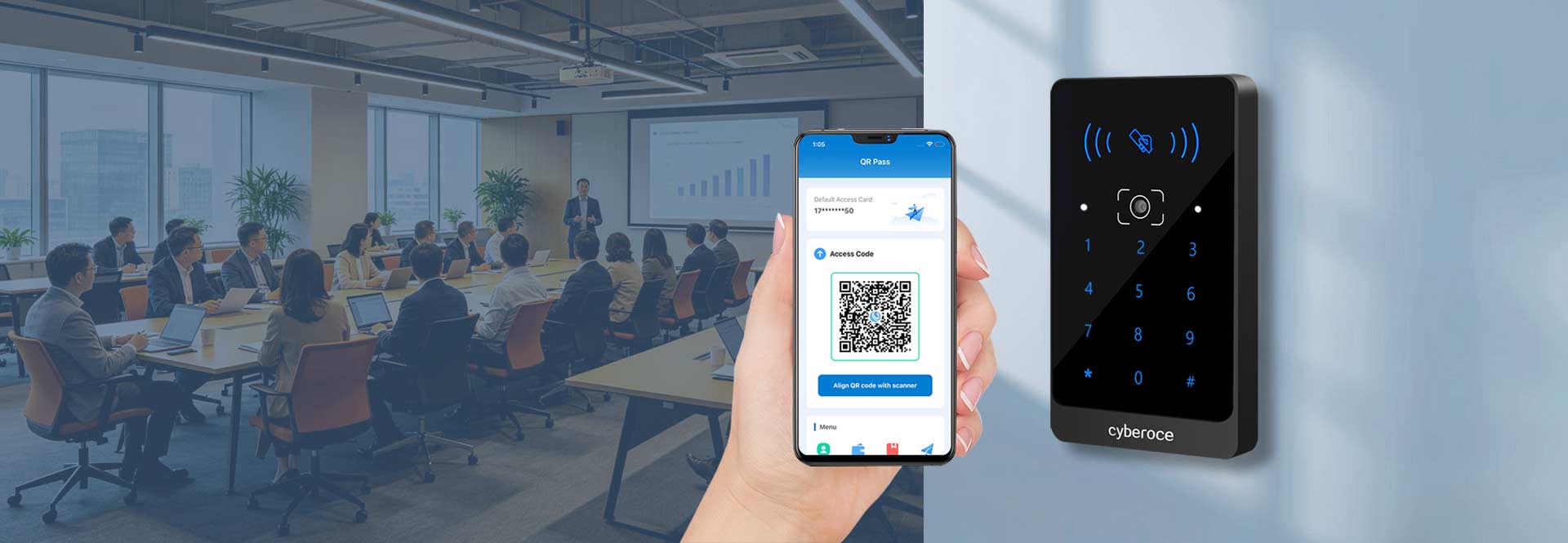

Support multi format QR codes 1D & 2D codes, QR & Micro QR codes, Barcode and QR codes used in paper or mobile phone.Touchless access control solution for visitor management.
Cyberoce QR Code Access Deader

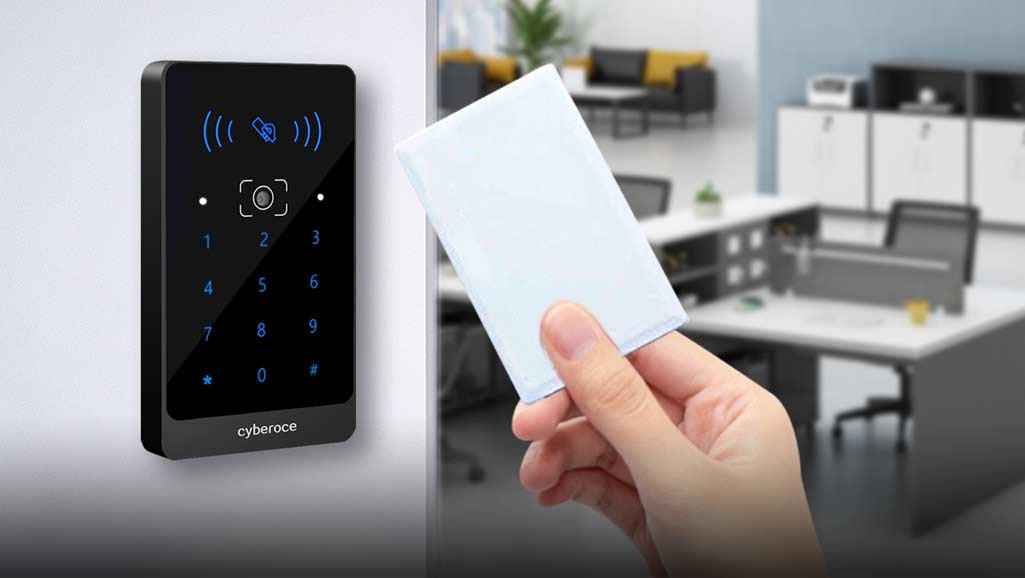

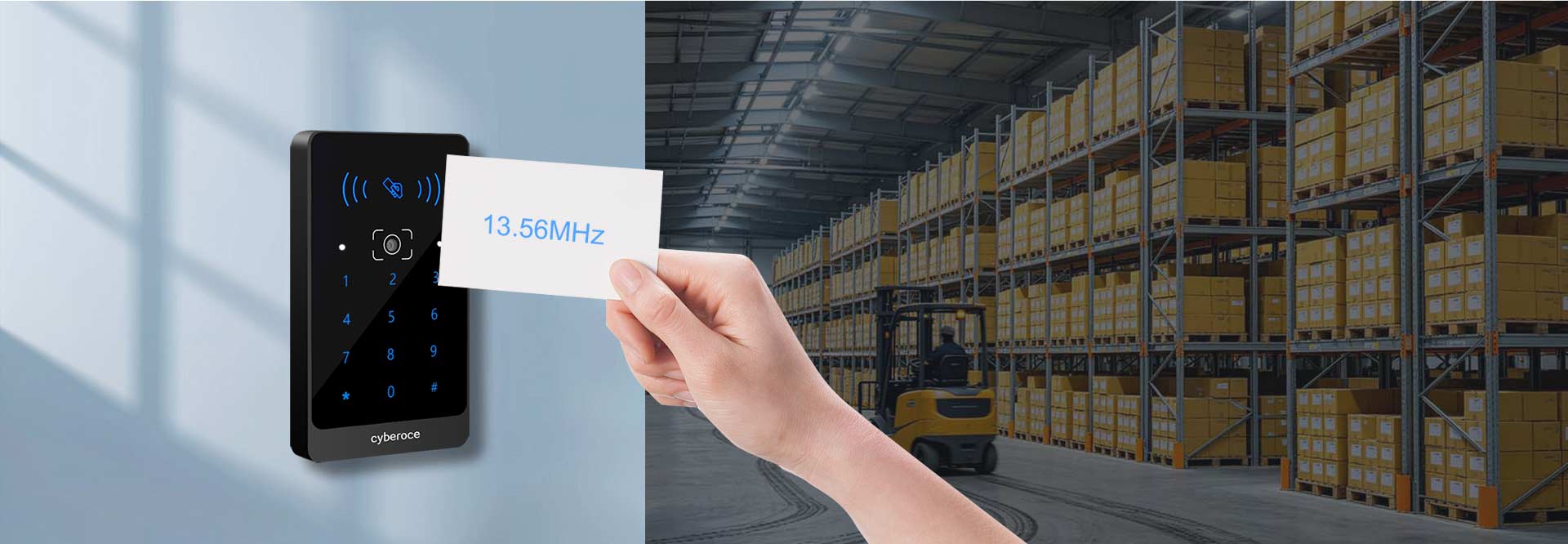

Compatible with 13.56MHz high-frequency RFID card and optional 125kHz low-frequency RFID card. suitable for application scenarios where credentials are mixed and used in the same location
Dynamic anti replication
Real-time refresh of encrypted dynamic QR codes, dual protection against cloning and repeated use, helping stop easy NFC unauthorized simulation of door opening.
RS485 / Wiegand Dual Protocol Communication
RS485/Wiegand dual protocol, no need replace controller for upgrade and renovation of access control project.

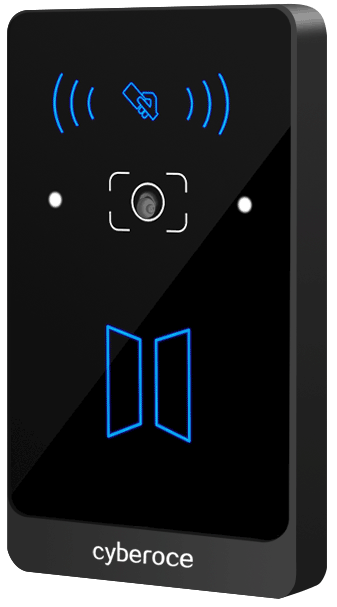

Indicator Configuration
Cyberoce C5/C5NK QR code access reader adopts a 9H high hardness tempered glass transparent panel, equipped with multi-color status indicator, and can provide feedback on equipment operation and configuration fault status through different lights such as blue, green, and red; At the same time, the device reserves GPIO interface and supports external controllers to trigger switching between light and sound indicators
Full Scan Code
Configuration
Parameter adjustment does not require disassembly; set via computer and mobile app for private applications and flexible command configuration.
Application Scenarios
Visitor
Colleges
Community
Hospital
Server Room
Office Building
Why Choose Us
12 years R&D
experiences
6400 cooperative
clients
88 honors and
patent certificates

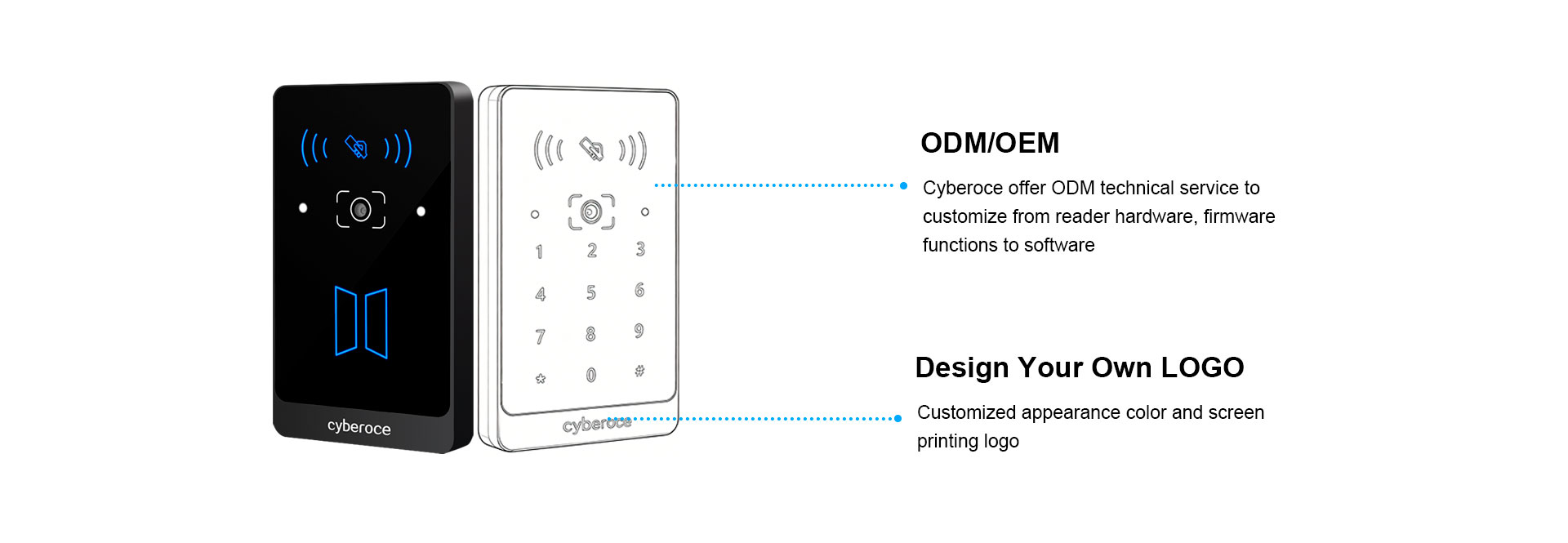

Support deep
customization
7*16 online
support
365-day after-sales
guarantee
Specification
|
Name |
QR Code Access Reader |
||
|
BASIC |
|||
|
Model |
|
||
|
Identification Method |
QR code/RFID card/PIN code QR code/RFID card |
||
|
Output Method |
Wiegand 26 / 34, R S485 |
||
|
Main Control Chip |
Main frequency 1 GB Hz |
||
|
Operating System |
Embedded Linux |
||
|
Dimensions |
1 08.8 * 63.8 * 15.2 mm |
||
|
Material |
ABS + tempered glass |
||
|
Weight |
About 150g (including packaging) |
||
|
QQR CODE |
|||
|
Sensor Resolution |
640*480 pixels (30 FPS) |
||
|
QR Code Reading Types |
QR code, PDF417, Data matrix, MicroPDF417, Aztec |
||
|
Types of 1D Codes |
Code 39, Code 128, (Can be extended to the following Bar codes:EAN-8, EAN-13, UPC-A, UPC-E, Code 93,Code 128C, UCC/EAN 128, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, GS1 Databar, GS1 Composite Code,Matrix 2 of 5,Code 11, Industrial 25, Standard 25,Plessey, MSI-Plessey,etc.） |
||
|
Reading Accuracy |
≥7mil |
||
|
Recognition Speed |
80ms |
||
|
Sensor Feld of View |
Horizontal 80°, vertical 51°, diagonal 88° |
||
|
Scan Angle |
Rotate 360°, front and back ±40°, left and right ±60° |
||
|
Identification Distance |
5-20cm (WeChat payment code) |
||
|
QR Code Support Range |
Wiegand 26-bit supports the range of (0-255), (1-65535); Wiegand 34-bit supports the range of 1-4294967295; RS485 supports a range of 1024 characters |
||
|
PROXIMITY CARD |
|||
|
Card Reader Types |
Support ISO1443A/ISO1443B protocol cards |
||
|
Operating Frequency |
1 3.56MHz |
||
|
Card Reading Distance |
less than 3 cm |
||
|
ELECTRIC |
|||
|
Operating Voltage |
DC 9V ~ 15V |
||
|
Working Current |
150mA (12V power supply) |
||
|
Standby Current |
120mA (12V power supply) |
||
|
ENVIRONMENTAL |
|||
|
Waterproof Level |
None |
||
|
Static Electricity Level |
Air discharge ±8 KV, contact discharge ±6 KV (power supply must be effectively grounded) |
||
|
Operating Temperature |
-20°C to 60°C |
||
|
Storage Temperature |
-40°C to 80°C |
||
|
Relative Humidity |
5-95%（Does not condense） |
||
|
Ambient Lighting |
Sunlight at noon, low light source at night |
||
