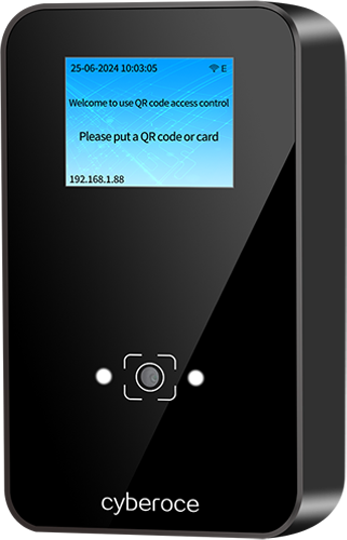

CR09EU

IPX7 Waterproof, Speaker, 2″ IPS Screen

All In One Access Control Terminal Built-In Controller

HTTP/MQTT Server Centralized Access Control System With
RFID/QR code/Barcode/Mobile Credential Reader

Embedded Linux OS, Multiple detection, Remote log analysis

Embedded Ethernet/WiFi Communication, Provide HTTP/HTTPS/MQTT Protocol

Embedded Relay Controller Latch/Electric Control
Support Both Exit Button & Lock Relay

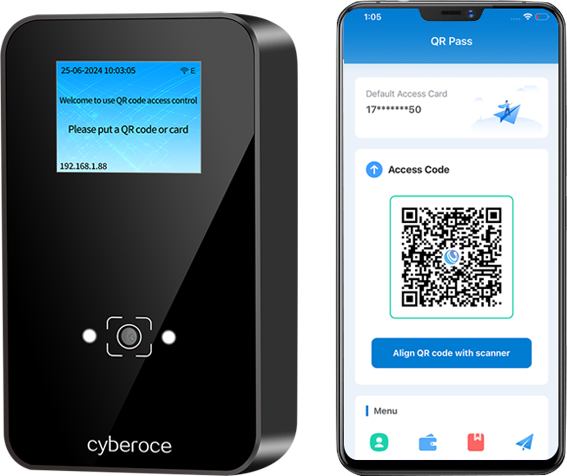

Multiple Recognition Technologies

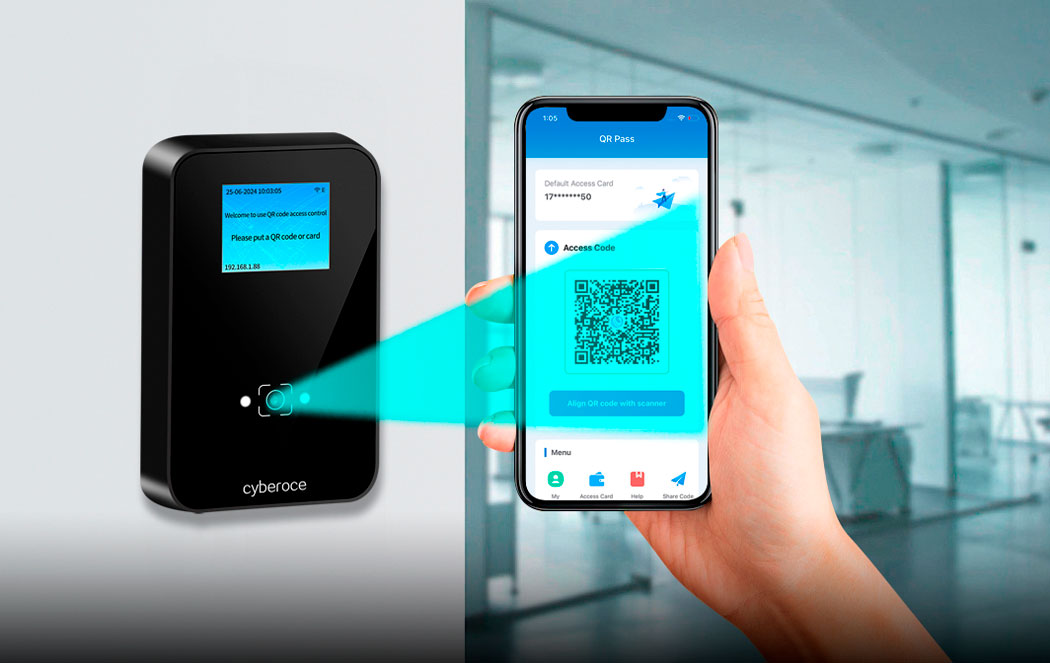

QR Code
CR09EU QR code access control support multiple format of QR code/Barcode, Enable real-time refreshing of dynamic QR codes, with limited time and access for door opening.

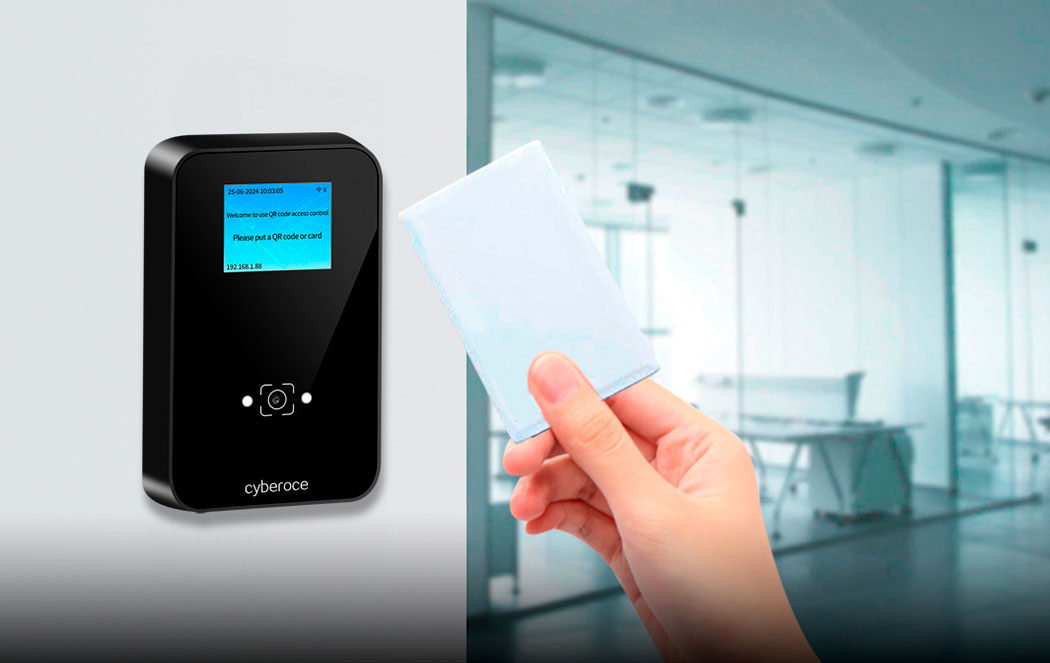

RFID Smart Card
Supports sector encryption for 13.56MHz cards and 125KHz

Dual-protocol offloading
and stability control

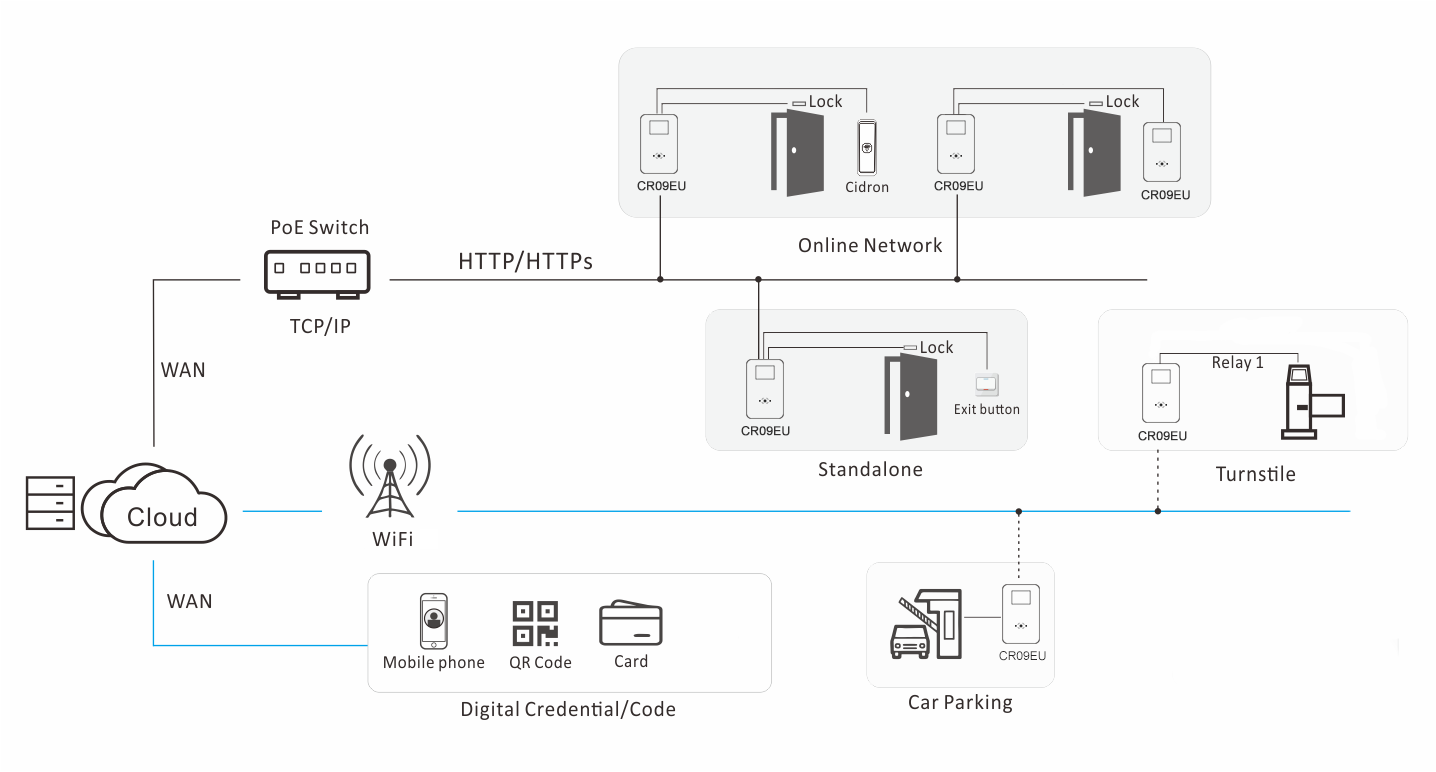

CR09EU provides HTTP/HTTPS, MQTT protocol and supports access control system integration. It enables stable network communication and scalable project deployment.

Automatic
Online/Offline Working
Modes Switch

CR09EU intelligently monitors network connectivity and switches between online and offline modes while keeping access data synchronized.

High-security encryption protection

The data interaction between the QR code access control hardware and software systems employs ciphertext methods, and utilizes encrypted HTTPS and MQTTS communication protocols to ensure data security. Additionally, it integrates multiple authentication methods such as signature verification and key verification, comprehensively enhancing the system’s security protection capabilities

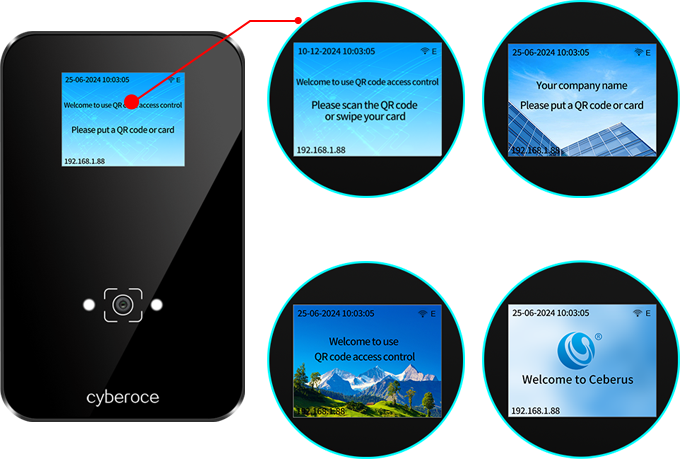

Quickly locate faults

CR09EU helps access control projects quickly troubleshoot wiring, network and on-site access status.

Easy voice replacement

Voice output can be customized for project-specific access prompts.

Highly Integrated, Easy To Install

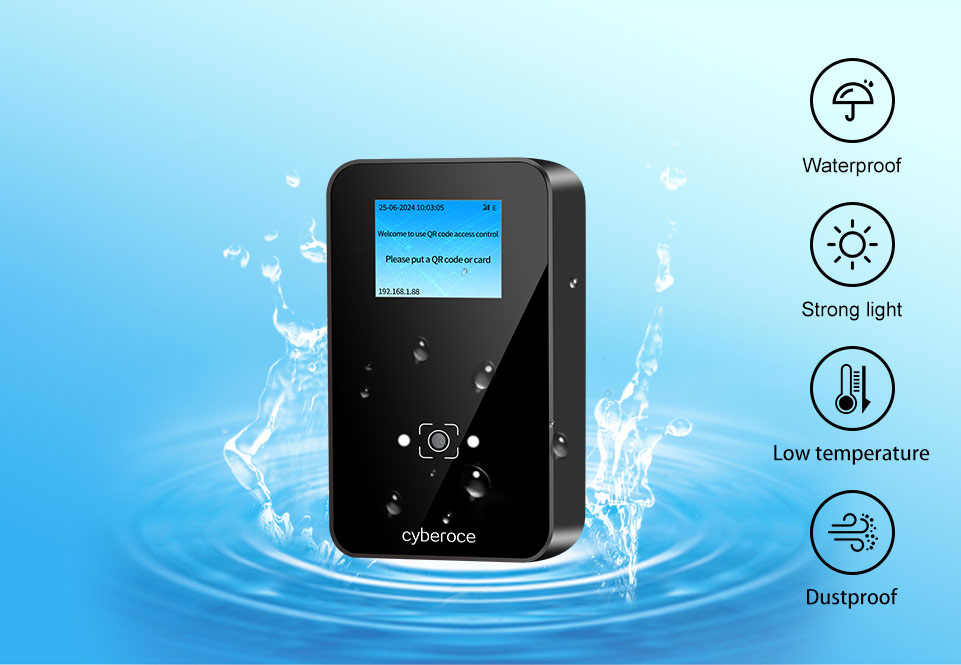

IP55 Waterproof For
Outdoor Use

Outdoor design supports demanding entrance environments and reliable access control deployment.

Time Zone Adaptation

The system supports global time zone adaptation for distributed projects.

WEB Configuration Cross-
Platform Compatibility

Web-based configuration helps manage and debug CR07EU across platforms.

Configuration

Application Scenarios

Visitor

Colleges

Community

Hospital

Server Room

Office Building

Why Choose Us

12 years R&D
experiences

6400 cooperative
clients

88 honors and
patent certificates

Support deep
customization

7*16 online
support

365-day after-sales
guarantee

Specification

Basic Parameters
Name	QR Code Access Control Terminal
Model	CR09EUP
Network Communication	Wired Ethernet / Wi-Fi (optional) / 4G (optional)
Supported Credential Types	QR Code / Barcode / 13.56 MHz MIFARE Card / 125 kHz EM Card (optional)
Wi-Fi Protocol	802.11b/g/n (for supported models)
Output Interface	Relay output
Main Processor	1 GHz high-performance processor
Operating System	Embedded Linux 4.4
Storage Capacity	100,000 offline users, 100,000 offline records
Memory	128 MB Flash
Communication Protocols	HTTP/HTTPS, MQTT
I/O Interface	Two inputs (IN1/IN2) for exit button, door sensor, etc.; One relay output for controlling electric lock, turnstile, automatic door, etc.; One multiplexed output for PUSH or tamper alarm functions
Extended Interface	Wiegand output or RS485 (mutually exclusive, Wiegand output by default)
Display	2.0-inch IPS display, 320 × 240 resolution
Screen Display	Supports verification result status prompts; Supports customizable background images
Voice Prompt	Built-in speaker with voice prompts; customizable audio files supported; TTS broadcast is available depending on configuration
Dimensions	131.2 * 82 * 24.1 mm
Material	ABS + tempered glass
Weight	Approx. 300 g (including packaging)
QR Code Parameters
2D Symbologies	QR Code (enabled by default); Data Matrix, PDF417, Micro QR Code, etc. (configurable)
1D Symbologies	Code 39, Code 128 (enabled by default); EAN-13, EAN-8, UPC-A, UPC-E, Codabar, ITF-14, Interleaved 2 of 5, etc. (configurable)
Minimum Resolution	≥ 7 mil
Recognition Speed	< 200 ms
Scanning Angle	Roll 360°, pitch ± 55°, yaw ± 55°
Field of View (FOV)	Horizontal 72°, vertical 54°, diagonal 84°
Reading Distance	5 – 20 cm
QR Code Data Capacity	Up to 1024 characters
Card Reading Parameters
Supported Card Types	13.56 MHz MIFARE Card; 125 kHz EM Card (optional)
Operating Frequency	13.56 MHz; 125 kHz (optional)
Supported Card Protocols	ISO 14443 Type A/B
MIFARE Card Sector Reading	Supported
125 kHz EM Card (Optional)	Supported
Reading Distance	MIFARE card: < 5 cm (subject to actual card and installation environment)
Electrical Parameters
Operating Voltage	DC 6 V to 25 V
Operating Current	200 mA (12 V power supply)
Standby Current	150 mA (12 V power supply)
Audio Amplifier	8 Ω: 1 W
Relay Load Capacity	1 A
Environmental Parameters
Waterproof Rating	IP55
Electrostatic Discharge (ESD)	Air discharge ± 8 kV, contact discharge ± 6 kV (effective grounding required for power supply)
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Relative Humidity	95% (non-condensing)
Ambient Light	From strong sunlight to low-light environments
4G Parameters (Optional)
Supported Network Standards	LTE Category 1 (Cat-1); FDD/TDD LTE supported; 5G not supported
Supported Frequency Bands	FDD-LTE: B1/B3/B5/B8 TDD-LTE: B34/B39/B40/B41
SIM Card Type	Nano SIM
Antenna Type	Built-in 4G antenna
