CR07EU
IPX7 Waterproof, Speaker, 2″ IPS Screen
All In One Access Control Terminal Built-In Controller
HTTP/MQTT Server Centralized Access Control System With
RFID/QR code/Barcode/Mobile Credential Reader
Embedded Linux OS, Multiple detection, Remote log analysis
+
Embedded Ethernet/WiFi Communication, Provide HTTP/HTTPS/MQTT Protocol
+
Embedded Relay Controller Latch/Electric Control
Support Both Exit Button & Lock Relay

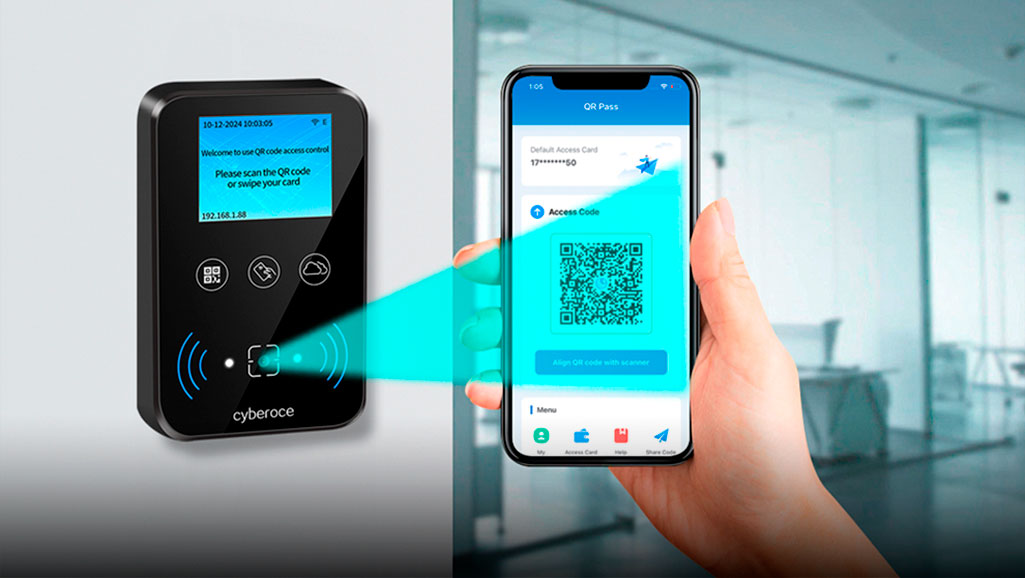

Multiple Recognition Technologies
QR Code
CR07EU QR code access control support multiple format of QR code/Barcode, Enable real-time refreshing of dynamic QR codes, with limited time and access for door opening.

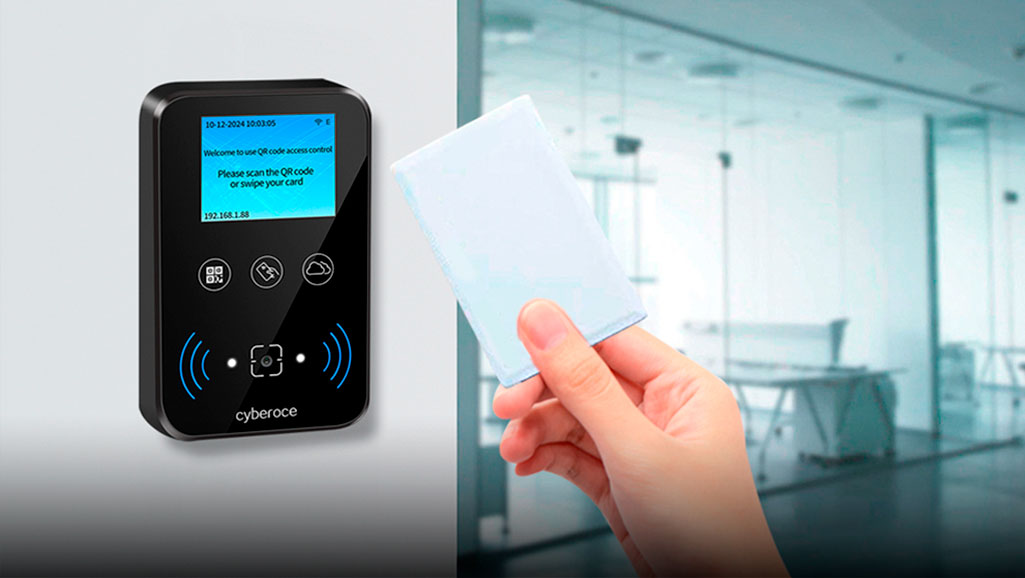

RFID Smart Card
Supports sector encryption for 13.56MHz cards and 125KHz

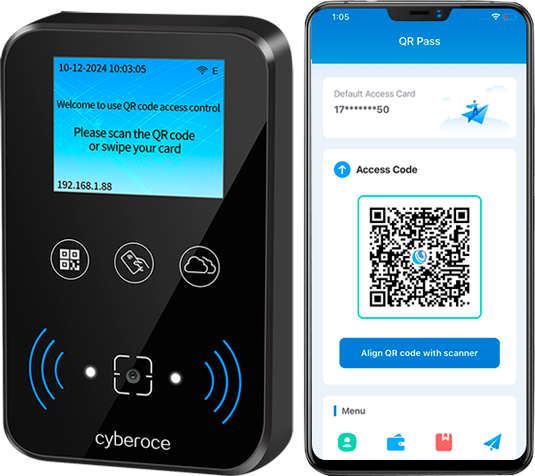

Mobile QR
Mobile QR credentials can be generated, shared and verified from a smartphone screen.
Dual-protocol offloading
and stability control
CR07EU provides HTTP/HTTPS, MQTT protocol and supports access control system integration. It enables stable network communication and scalable project deployment.
Automatic
Online/Offline Working
Modes Switch
CR07EU intelligently monitors network connectivity and switches between online and offline modes while keeping access data synchronized.
High-security encryption protection
The data interaction between the QR code access control hardware and software systems employs ciphertext methods, and utilizes encrypted HTTPS and MQTTS communication protocols to ensure data security. Additionally, it integrates multiple authentication methods such as signature verification and key verification, comprehensively enhancing the system’s security protection capabilities
Quickly locate faults
CR07EU helps access control projects quickly troubleshoot wiring, network and on-site access status.

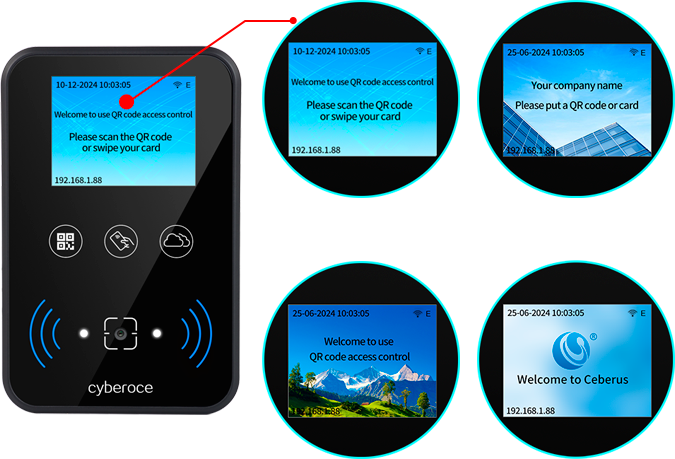

Easy voice replacement
Voice output can be customized for project-specific access prompts.
Highly Integrated, Easy To Install

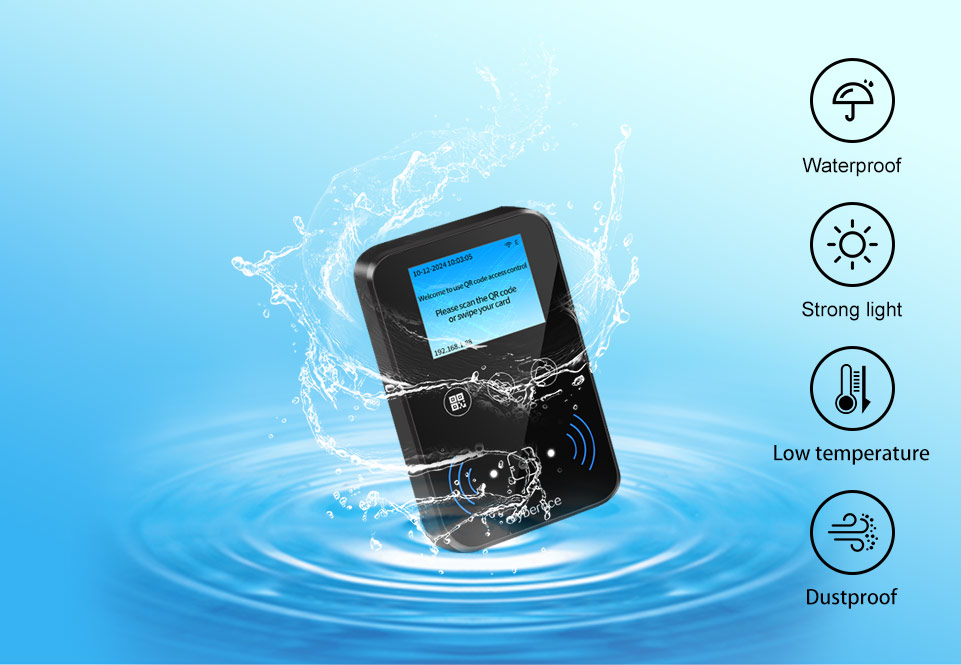

IPX7 Waterproof For
Outdoor Use
Outdoor design supports demanding entrance environments and reliable access control deployment.
Time Zone Adaptation
The system supports global time zone adaptation for distributed projects.

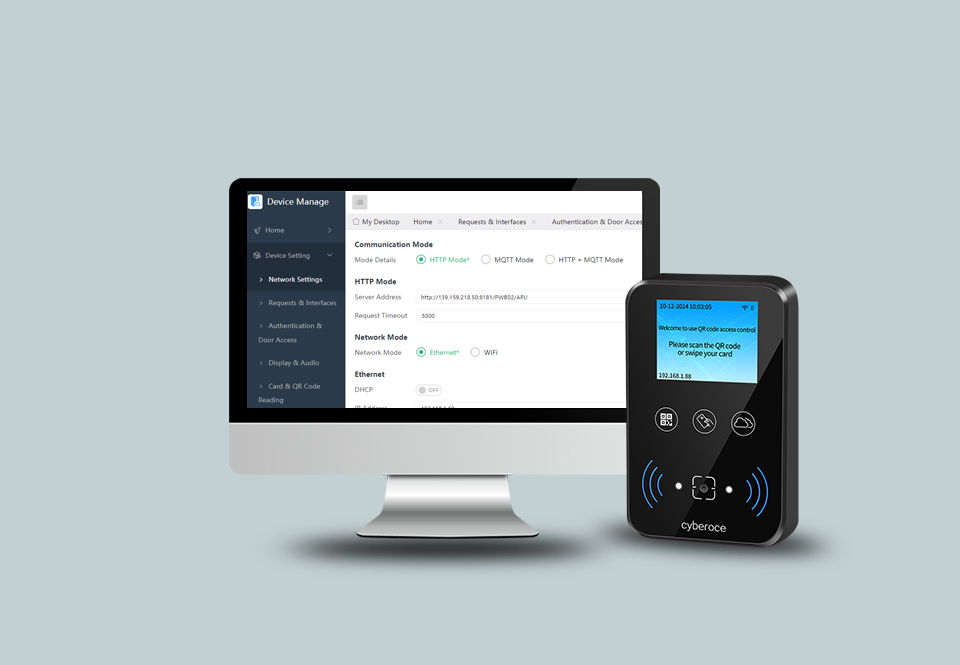

WEB Configuration Cross-
Platform Compatibility
Web-based configuration helps manage and debug CR07EU across platforms.

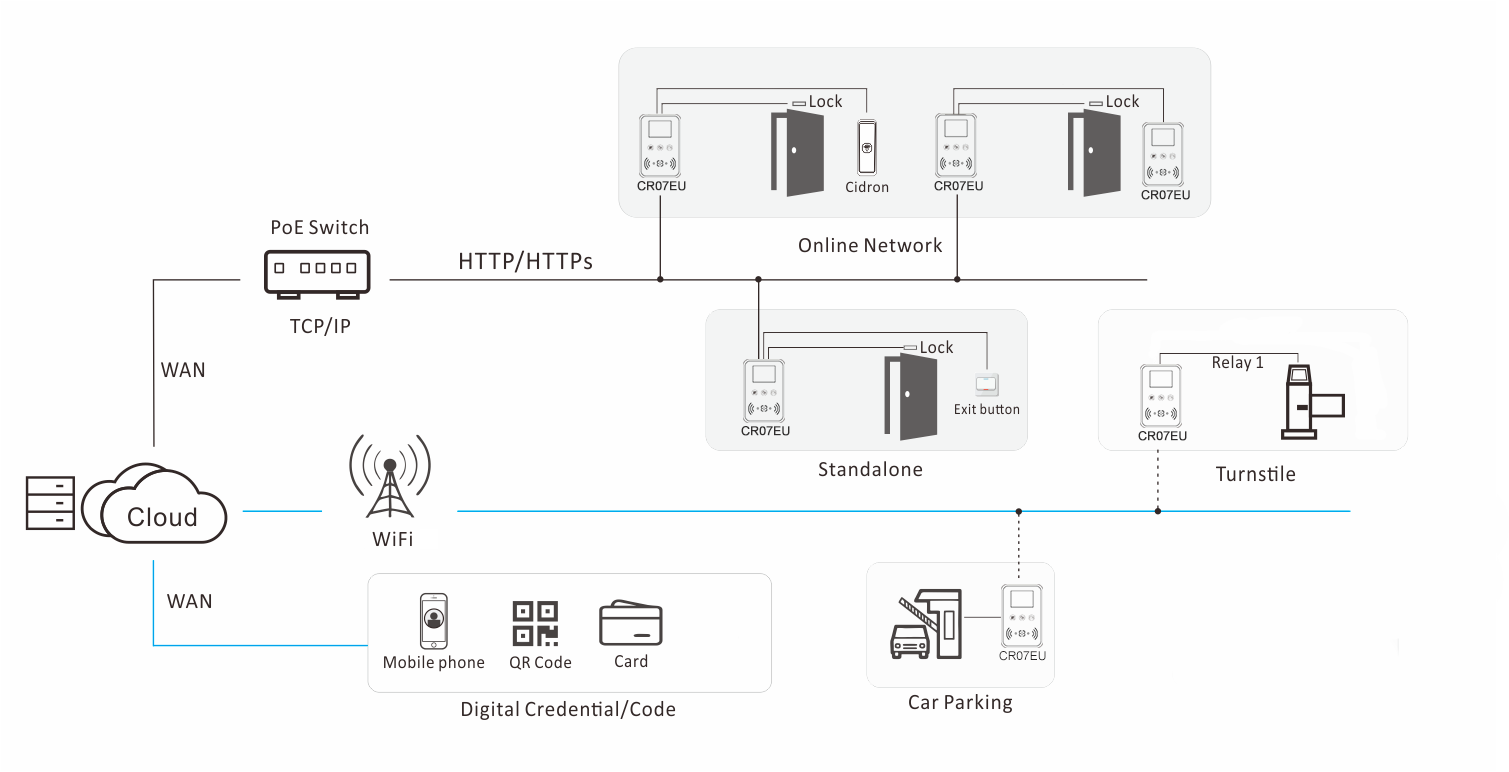

Configuration
Application Scenarios
Visitor
Campus
Community
Hospital
Server Room
Office Building
Why Choose Us
12 years R&D
experiences
6400 cooperative
clients
88 honors and
patent certificates
Support deep
customization
7*16 online
support
365-day after-sales
guarantee
Specification
| Name | QR code Access Controller |
| BASIC | |
| Model | CR07EU |
| Networking Method | Ethernet |
| Identification Method | QR code / RFID card |
| Output Method | Relay signal |
| Master Chip | x1021 (XBurst® 800MHz) |
| Operating System | Embedded Linux |
| Offline Whitelist | 10000 |
| Tamper Alarm | None |
| Storage Memory | 128M Flash |
| Protocol | http, https, MQTT |
| Input and output | Two inputs for exit buttons and door sensors; one relay output for electric locks, gates and related access hardware. |
| Extended Communication Interface | Wiegand output or RS485 output, optional one of the two, Wiegand by default. |
| Display | 2.0-inch IPS screen, resolution 320*240 |
| Physical Dimension | 115.08*75.1*15mm |
| Material | ABS + tempered glass |
| Weight | About 190g, includes packaging box |
| QR CODE | |
| Reading QR Code Types | QR Code, etc. |
| Reading 1D code Types | C128, C39, etc. |
| Reading accuracy | ≥7mil |
| Recognition speed | <200ms |
| Reading Angle | Rotation 360°, elevation ±55°, declination ±55° |
| Scan Angle | 72° level, 54° vertical, 84° diagonal |
| Recognition Distance | 5-20cm |
| QR Code Support Range | 1024 characters |
| PROXIMITY CARD | |
| Supported Card Reading Types | Support ISO1443A / ISO1443B protocol card |
| Working Frequency | 13.56MHz |
| RFID card reading sector | Support |
| Card Reading Distance | IC card: less than 5CM; EM card: less than 2CM |
| EM Card optional | Support 125K EM card |
| ELECTRIC | |
| Operating Voltage | DC 6V~25V |
| Working Current | 200mA, 12V power supply |
| Stand-by Current | 150mA, 12V power supply |
| Audio Amplifier optional | 8Ω: 1W; 4Ω: 3W |
| Relay Load Capacity | 1A |
| ENVIRONMENT | |
| Waterproof level | IPX7 |
| Static Electricity Level | Air discharge ±12KV, contact discharge ±6KV, power supply needs to be effectively grounded |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Relative Humidity | 95%, does not condense |
| Ambient Lighting | Sunlight at noon, low light source at night |
