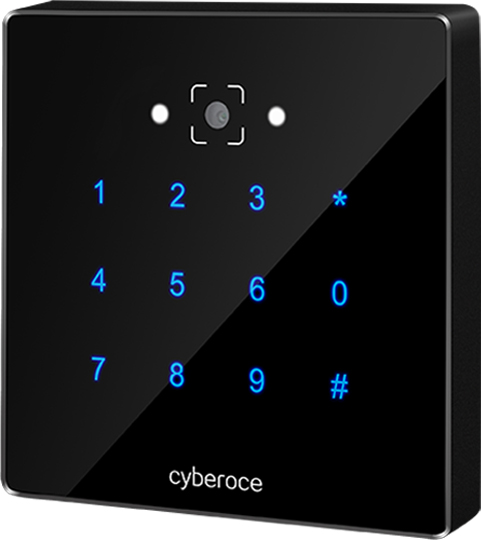

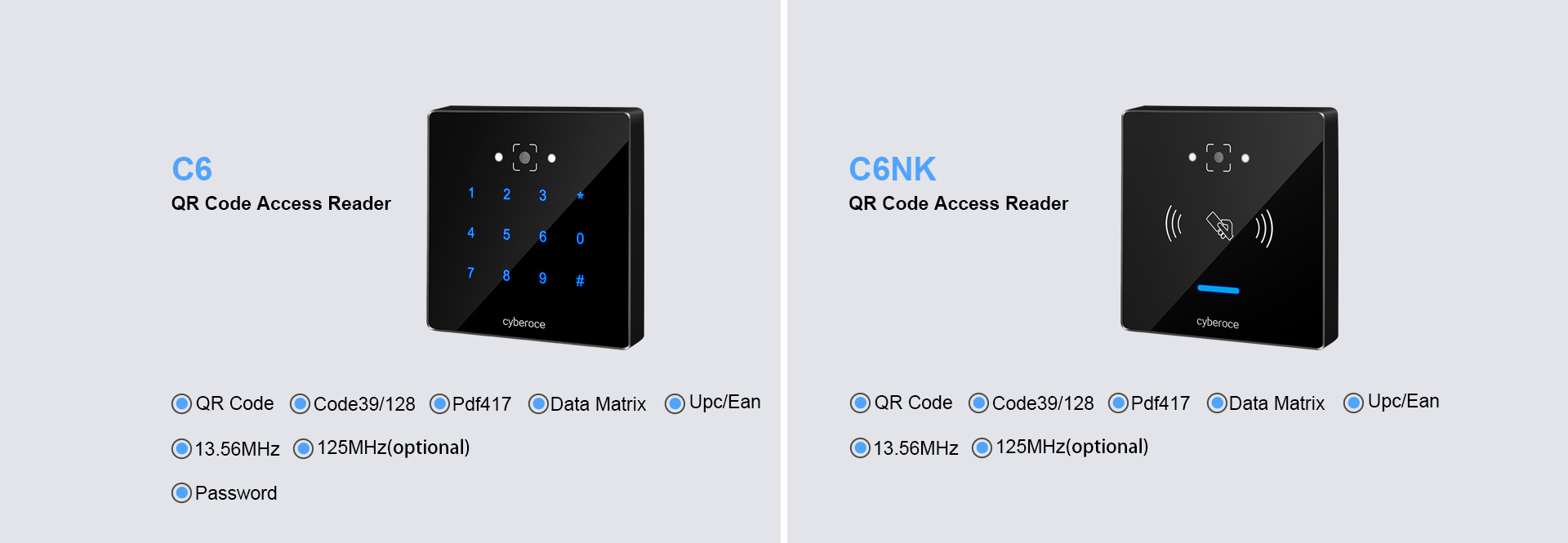

C6/C6NK
IPX7 waterproof / Wiegand/RS485 / 2-in-1
Multi function QR code access reader

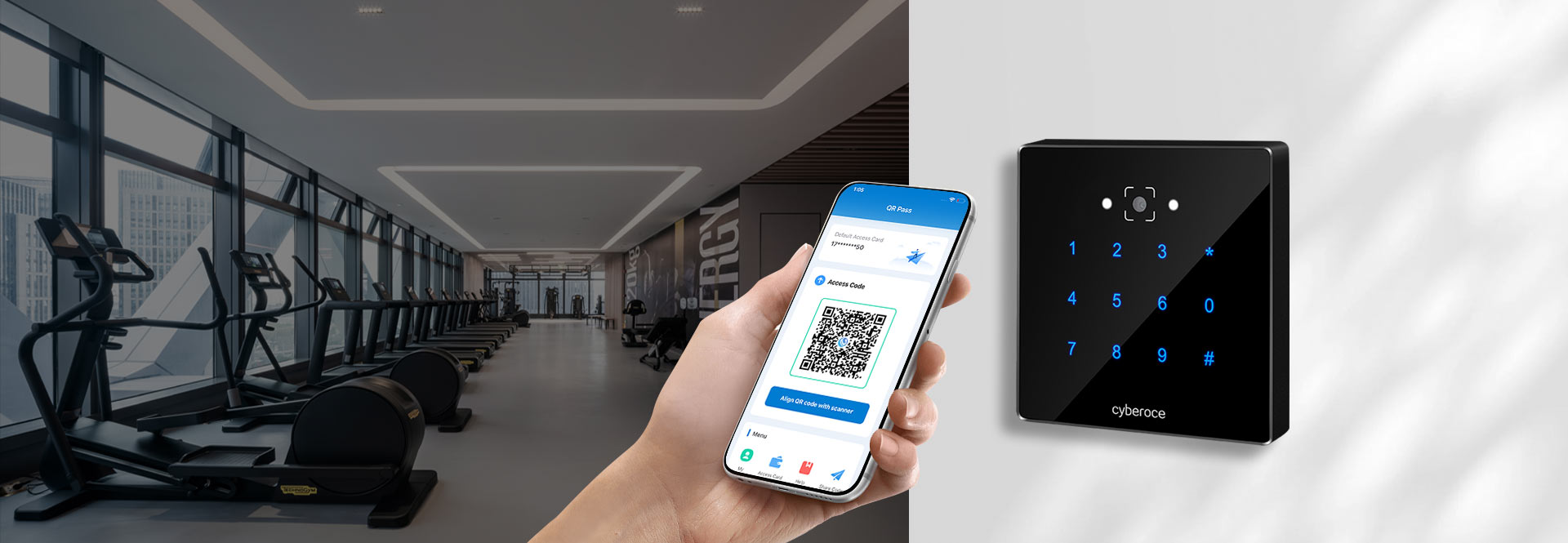

Support setting temporary QR codes
with time and frequency limits,
and automatic invalidation of visitor
permissions upon expiration.

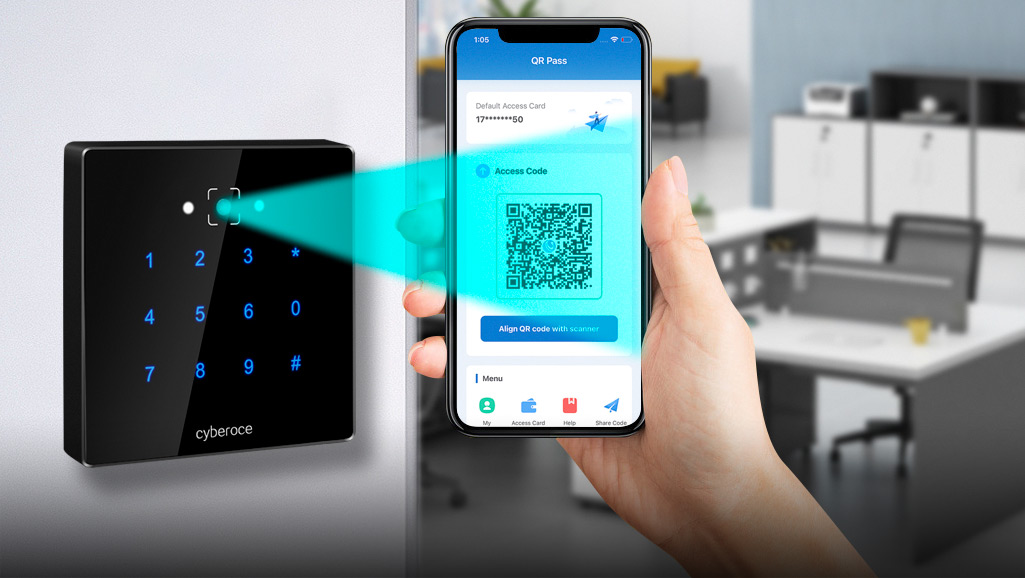

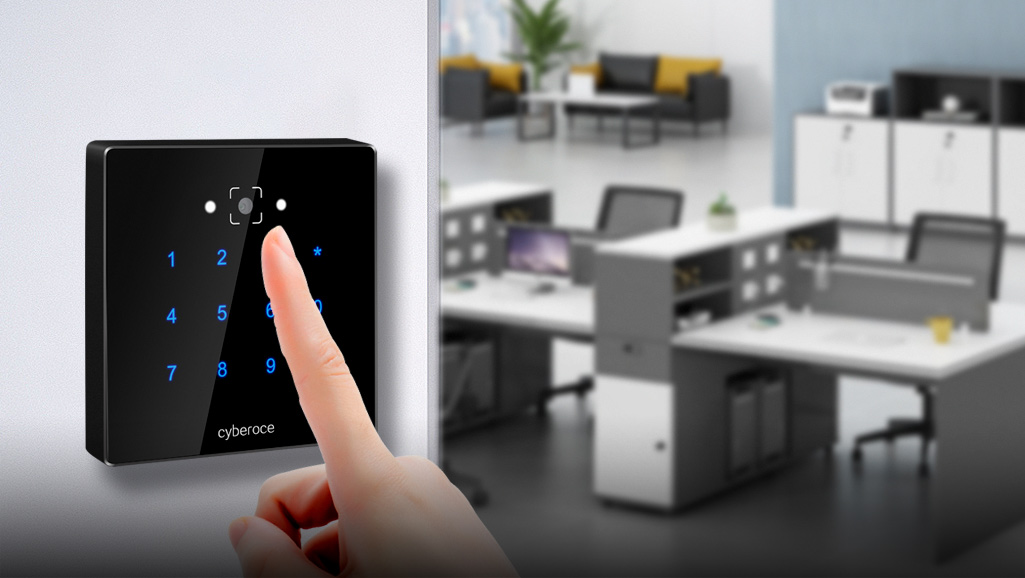

Multiple Recognition Technologies

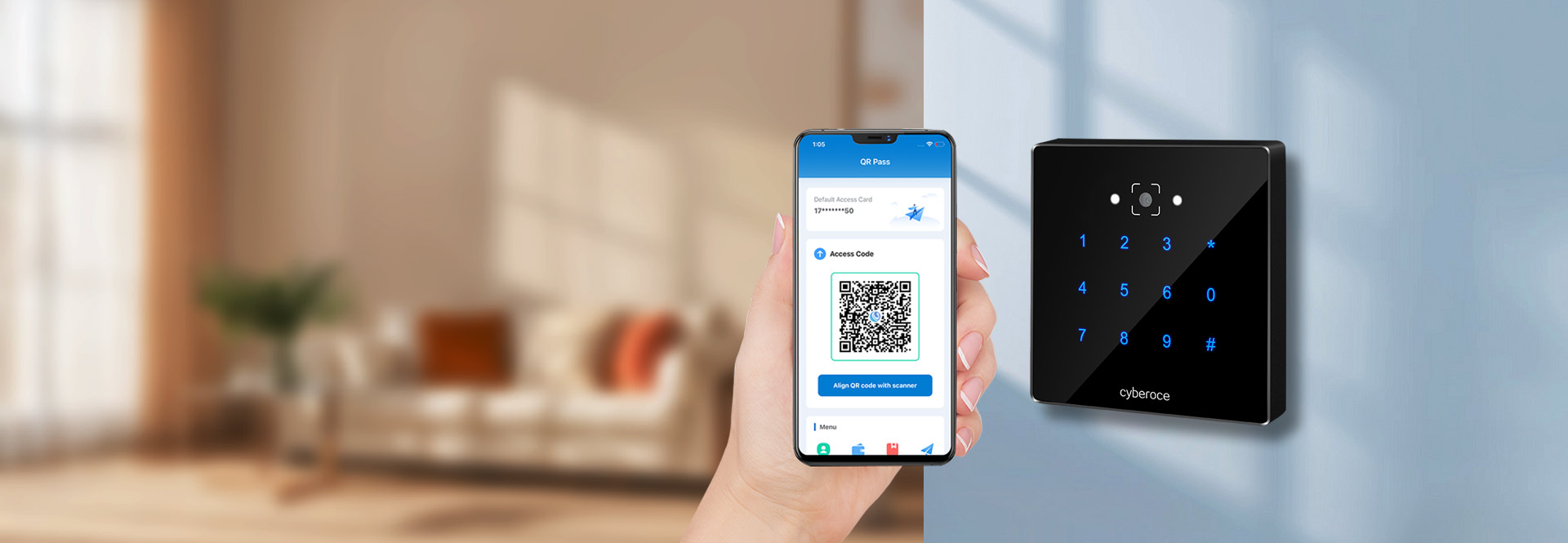

Touchless Access
Control QR Code
Scanner Reader
Support multi format QR codes 1D & 2D codes, QR & Micro QR codes, Barcode and QR codes used in paper or mobile phone.Touchless access control solution for visitor management.
Cyberoce QR Code Access Deader

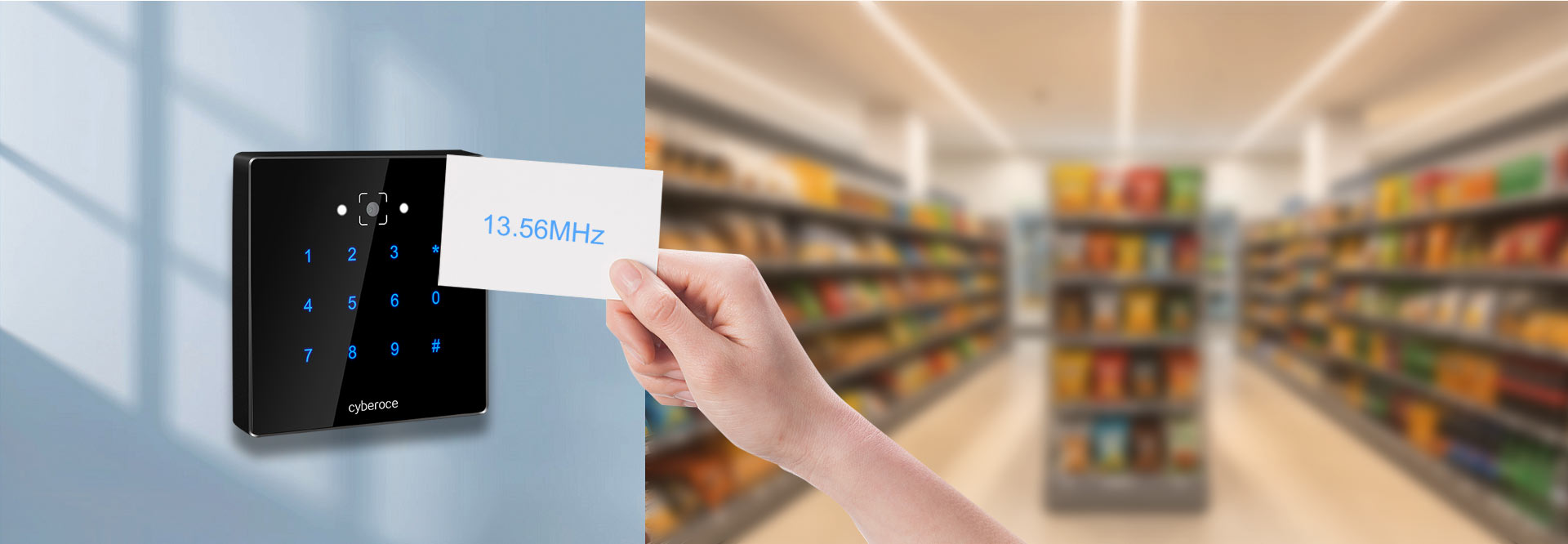

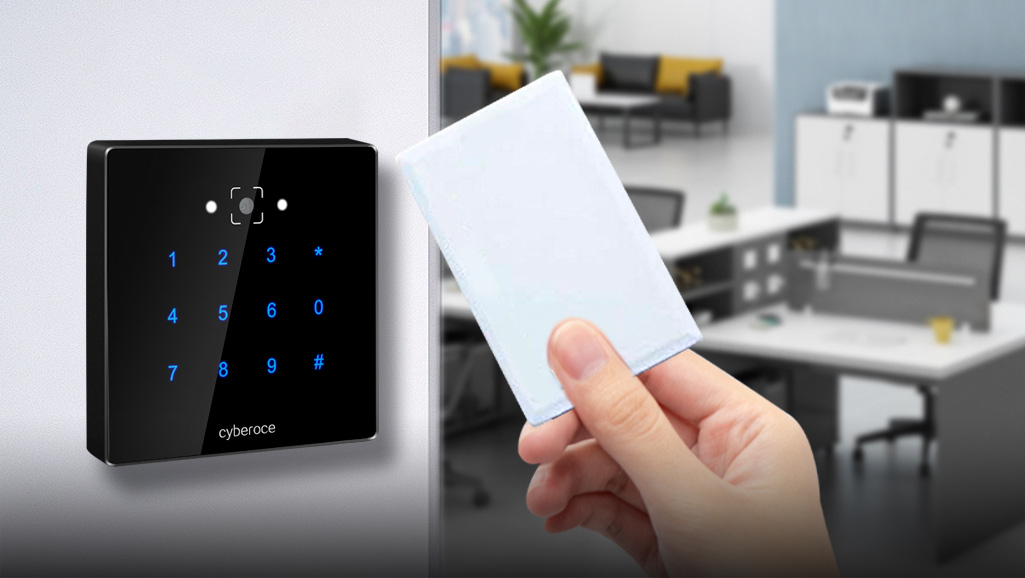

Compatible with 13.56MHz high-frequency RFID card and optional 125kHz low-frequency RFID card. suitable for application scenarios where credentials are mixed and used in the same location

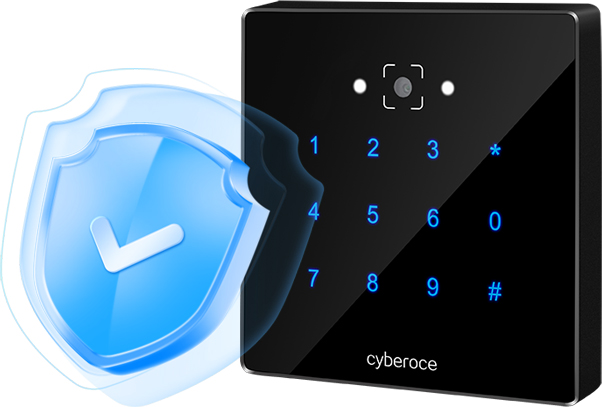

Dynamic anti replication
Real-time refresh of encrypted dynamic QR codes, dual protection against cloning and repeated use, helping stop easy NFC unauthorized simulation of door opening.
RS485 / Wiegand Dual Protocol Communication
RS485/Wiegand dual protocol, no need replace controller for upgrade and renovation of access control project.

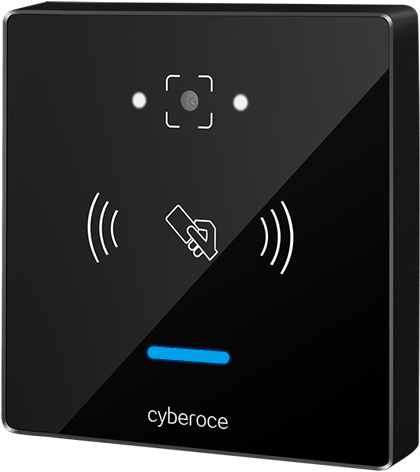

Indicator Configuration
Cyberoce QR code access reader adopts a tri-light luminous recognition plate, providing clear open, connected and lock status feedback through different light colors.

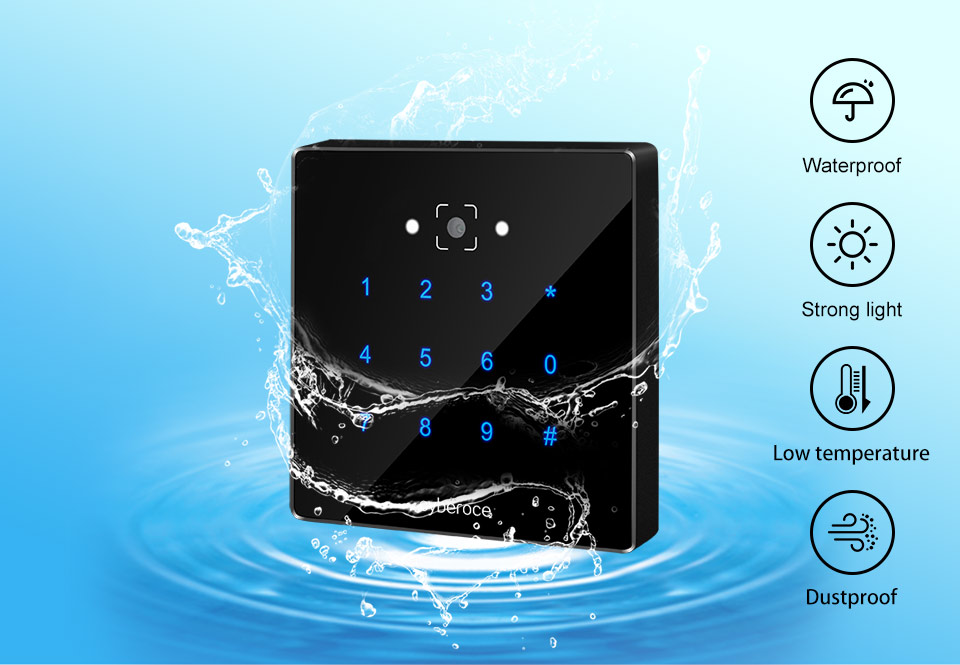

IPX7 Waterproof For
Outdoor Use
Compact design, utilizing glue filling technology, waterproof, dustproof and resistant to strong light.

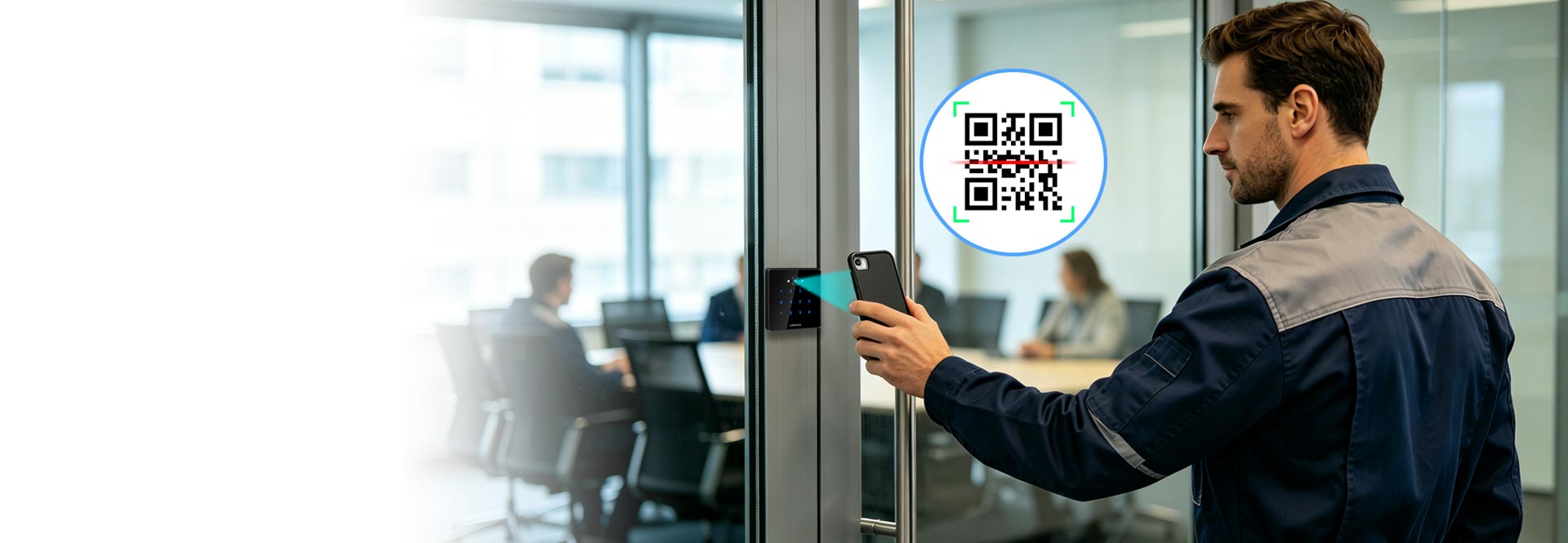

Full Scan Code
Configuration
Parameter adjustment does not require disassembly; set via computer and mobile app for private applications and flexible command configuration.
Application Scenarios
Visitor
Colleges
Community
Hospital
Server Room
Office Building
Why Choose Us
12 years R&D
experiences
6400 cooperative
clients
88 honors and
patent certificates
Support deep
customization
7*16 online
support
365-day after-sales
guarantee
Specification
| Name | QR code Access Reader | ||
|---|---|---|---|
| BASIC | |||
| Model |
|
||
| Networking Method | Wiegand / RS485 | ||
| Identification Method |
|
||
| Output Method | Wiegand 26/34, RS485 | ||
| Input Voltage | 5-24V | ||
| Waterproof Rate | IPX7 | ||
| Material | ABS + tempered glass | ||
| Size | 86 x 86 x 16.5mm | ||
| Weight | 200g | ||
| QR CODE | |||
| QR Code Types | QR Code, Code39/128, PDF417, Data Matrix, UPC/EAN | ||
| Reading 1D code Types | Code 39, Code 128, (Can be extended to the following Bar codes:EAN-8, EAN-13, UPC-A, UPC-E, Code 93,Code 128C, UCC/EAN 128, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, GS1 Databar, GS1 Composite Code,Matrix 2 of 5,Code 11, Industrial 25, Standard 25,Plessey, MSI-Plessey,etc.） | ||
| RFID CARD | |||
| Working Frequency | 13.56MHz, 125KHz optional | ||
| Card Type | RFID smart card | ||
| INTERFACE | |||
| Communication | Wiegand / RS485 dual protocol | ||
| Installation | 86-size wall mounted reader | ||
| Customization | ODM/OEM appearance color and logo printing | ||
